Product Description
- Ventilator shell: made of hot-dipped galvanized sheet which has spray painted automobile coating on its surface
- Impeller: made of aluminum casting alloy blades.
- Fan guard: dusting, zinc coating
- Switch: Push button.
- Intergrated plastic handle for easy carrying.
- Motor: It is wrap around with international standard copper wire
- With radiating rib aluminum casting integrated motor shell.
Application
- Exhaust and supply flesh air in remote or deep operating zone, confined space construction and other bad air environment.
- Exhausting welding waste gas, smoke, dust, the smell of paint during shipbuilding and maintenance.
- Field of machinery, chemical industry, plant warehouse, underground sinking and driving engineering

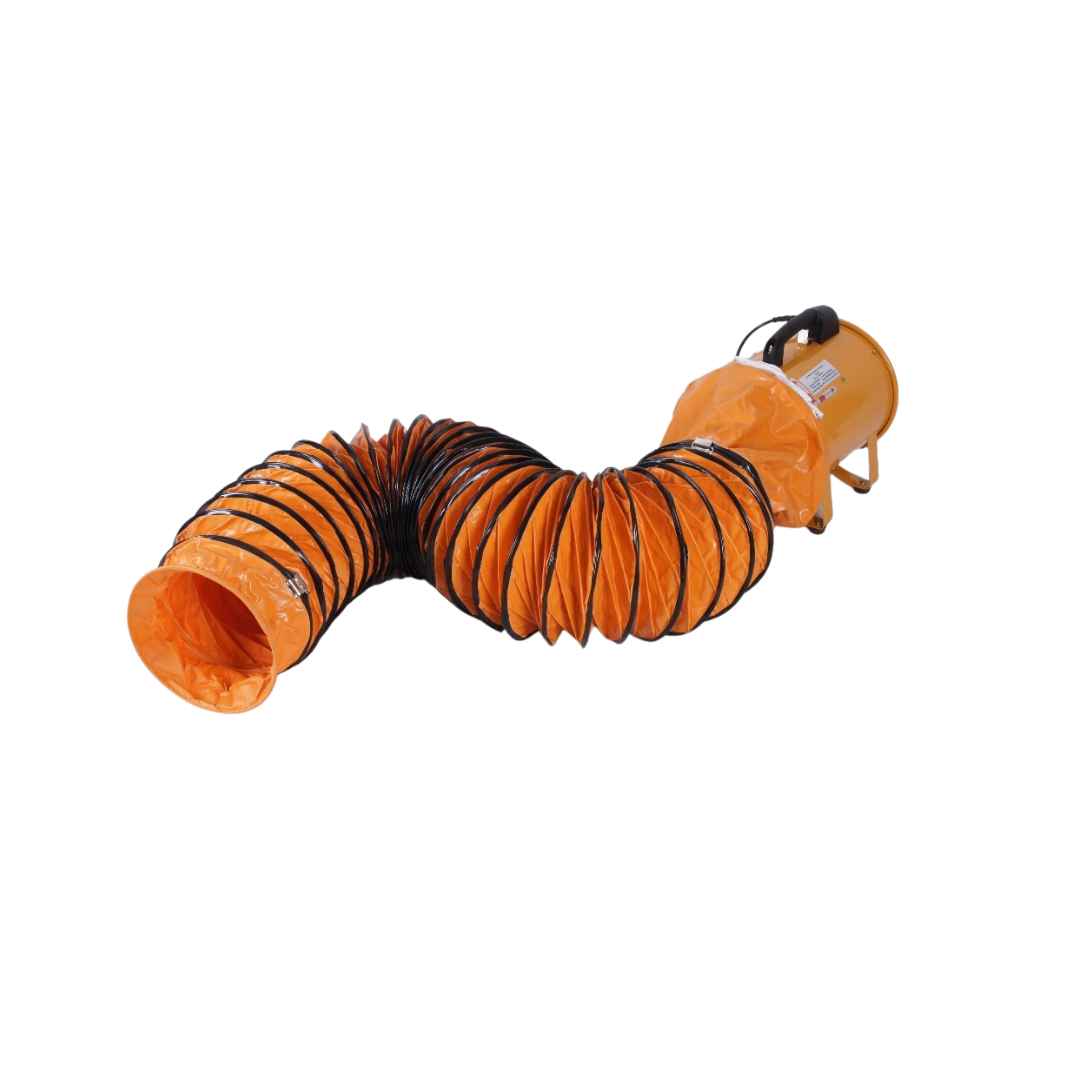

ท่อส่งลม/Flexible Duct Hose
Technical Parameters
| Model No. | Diameter | Voltage | Phase | Frequency | Speed | Power | Air Flow | Static | Noise |
| SHT | mm | v | Hz | rpm | W | m3/min | pa | dB(A) | |
| SHT-20 | 200(8") | 220 | 1 | 50/60 | 2800 | 230 | 25 | 245 | 63 |
| SHT-25 | 250(10") | 220 | 1 | 50/61 | 2800 | 320 | 43 | 294 | 68 |

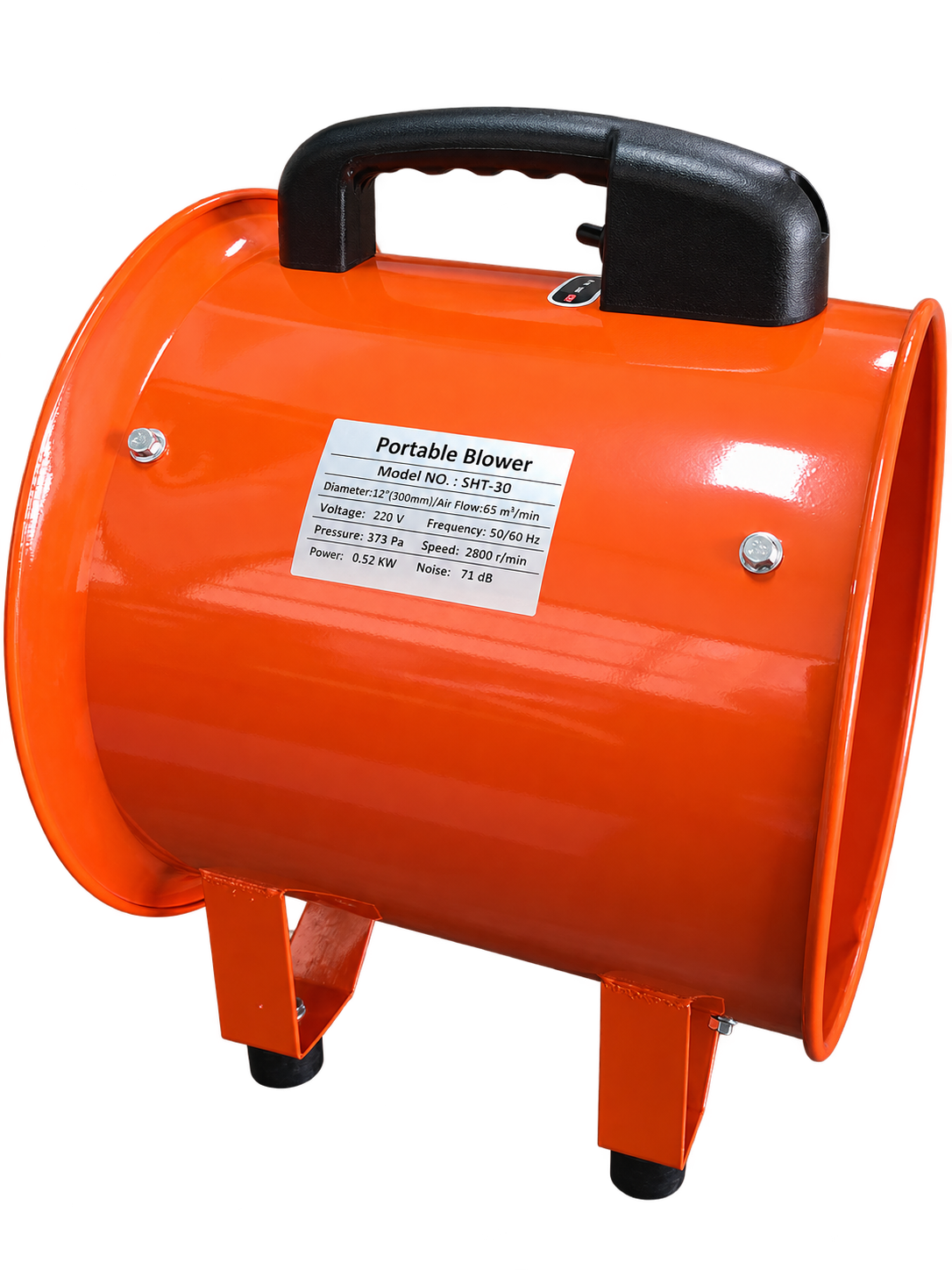

| SHT-30 | 300(12") | 220 | 1 | 50/62 | 2800 | 520 | 65 | 373 | 71 |

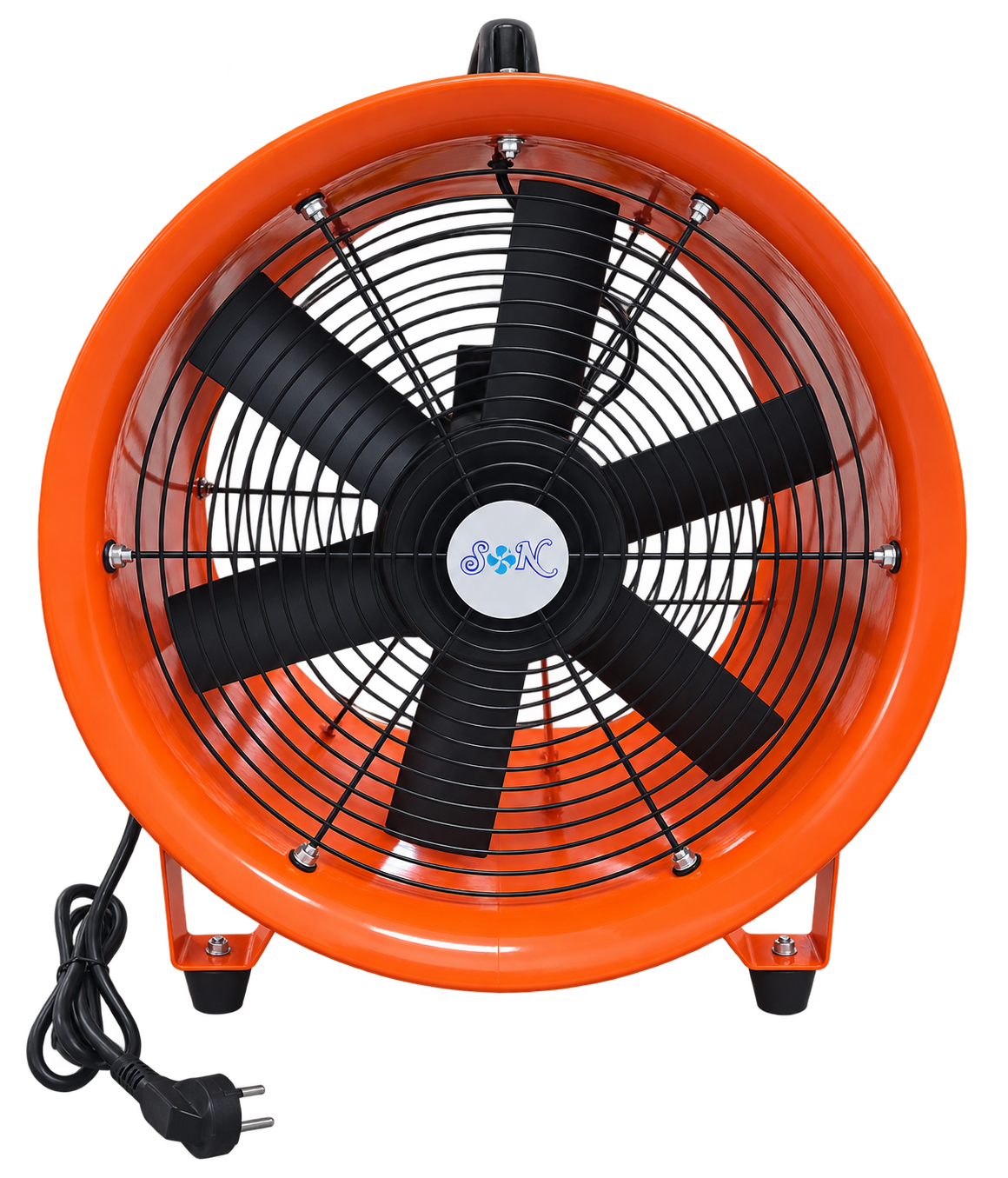

| SHT-40 | 400(16") | 220 | 1 | 50/63 | 2800 | 1100 | 96 | 700 | 80 |

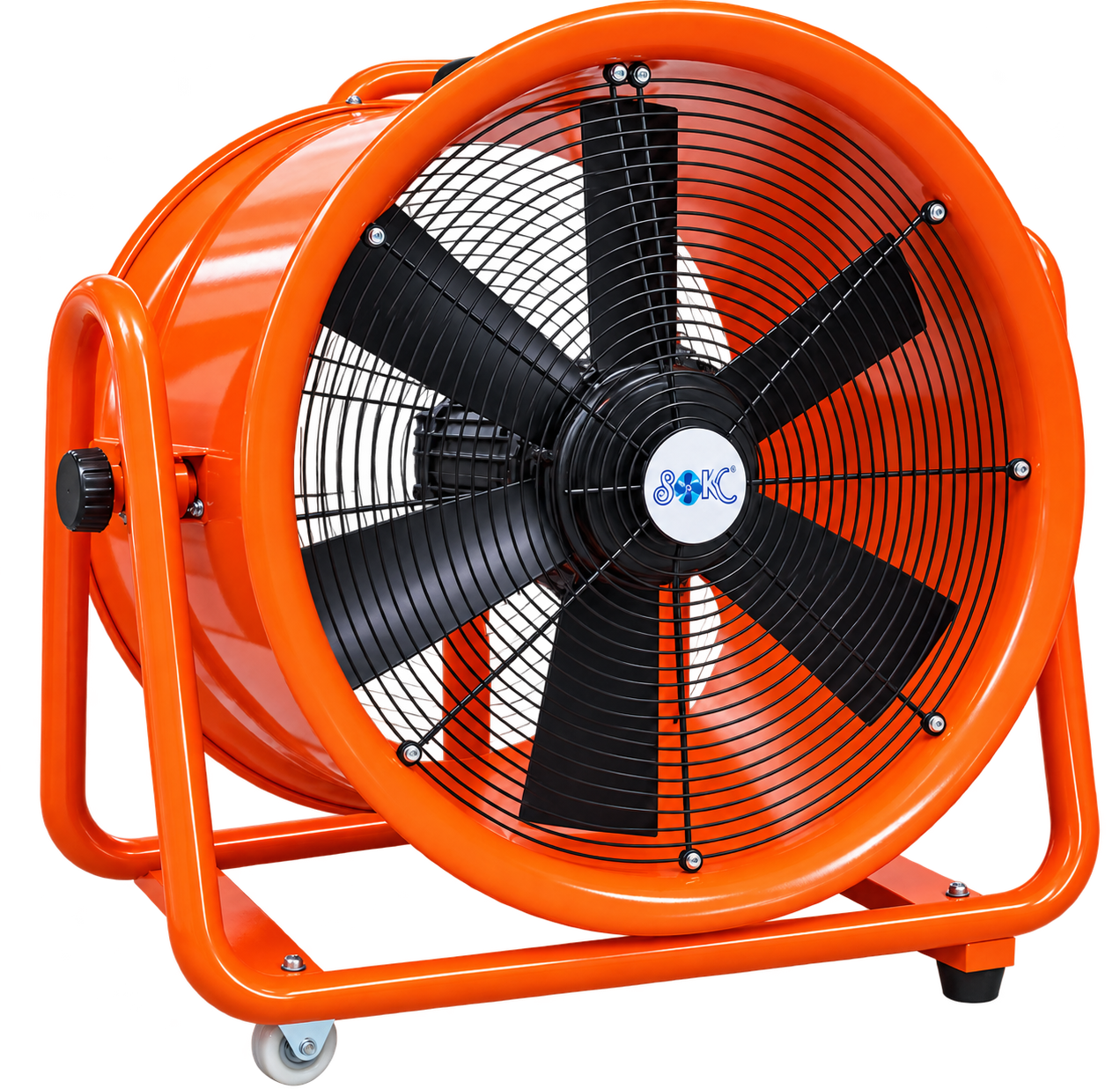

| SHT-50 | 500(20") | 220 | 1 | 50/64 | 2800 | 2000 | 200 | 1050 | 88 |
| SHT-60 | 600(24") | 220 | 1 | 50/65 | 1400 | 2200 | 240 | 1100 | 92 |
